บริษัท ไฮโดรซิสเต็มส์ (ประเทศไทย) จำกัด เป็นผู้นำเข้าปั้มน้ำไฟฟ้า จากโรงงาน EIM ELECTRIC CO.,LTD. ประเทศญี่ปุ่น

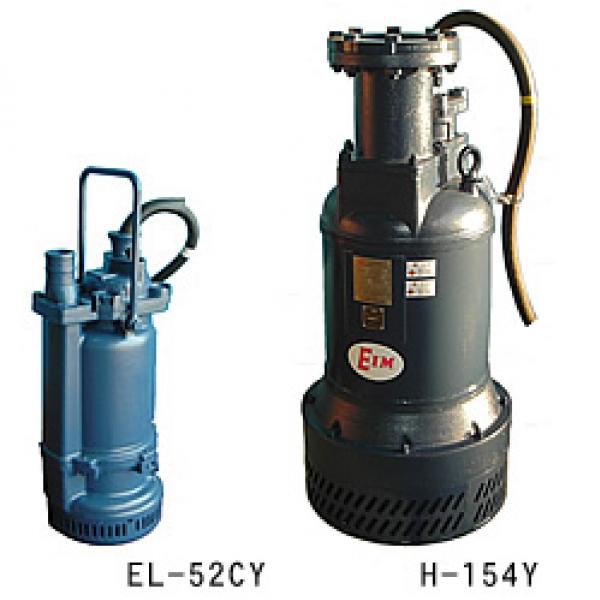

Model Y: Standard (EL-Y), High-head Type (CSH-Y)
SPECIAL PURPOSE SUBMERSIBLE PUMPS -Flameproof Type for Industrial Use -
General Industries Use
FLAMEPROOF Type (Model Y)
Safe operation guaranteed in combustible gas and ignitable vapor atmosphere ■Approved explosion-proof structure by The Research Institute of Industrial Safety of Ministry of Labor in Japan. |
■For pumping and discharging water at oil and gas refineries plants and for excavation work. |
■Full stainless steel type also available. |
Model | Discharge | No. of Poles | Motor Output | Rated Head | Rated Flow | Weight | Explosion-proof Construction | Power Cable | Specification for Common Model | | mm | inch | kW | HP | m | ft | m3/min | l/s | kg | mm2×Core×Length(m) | Model | Frequency(Hz) | Voltage(V) | Insulation Class | EL-52CY | 50 | 2 | 2 | 1.5 | 2 | 15 | 49 | 0.2 | 3.3 | 53 | d2G4 | 3.5×4×10 | EL-52CYE | 50/60 | 200/220 400/440 | E/B | EL-52CJY | EL-52CJYE | EL-53CY | 50 | 2 | 2 | 2.2 | 3 | 15 | 49 | 0.32 | | 80 | d2G4 | 3.5×4×10 | EL-53CYE | 50/60 | 200/220 400/440 | E/B | EL-53CJY | EL-53CJYE | EH-85Y | 80 | 3 | 2 | 3.7 | 5 | 25/20 | 82/66 | 0.3/0.5 | 5.0/8.3 | 80 | d2G3 | 3.5×4×15 | EH-85QY | 50/60 | 200/220 400/440 | E/B | EH-85JY | EH-85JQY | EL-108Y | 100 | 4 | 4 | 5.5 | 8 | 15 | 49 | 1.0 | 16.7 | 147 | d2G3 | 3.5×4×10 | EL-108QY | 50/60 | 200/220 400/440 | E/B | EL-108JY | EL-108JQY | EL-108QKY | EL-108JKY | EL-108JQKY | EL-108KY | EH-1010FY | 100 | 4 | 4 | 5.5 | 10 | 25 | 82 | 0.8 | 13.3 | 160 | d2G4 | 5.5×4×15 | EH-1010FYE | 50/60 | 200/220 400/440 | F | EH-1010FQY | EH-1010FQYE | EL-1015Y | 100 | 4 | 4 | 11 | 15 | 28 | 92 | 1.2 | 20.0 | 245 | d2G4 | 14×4×10 | EL-1015YE | 50/60 | 200/220 400/440 | E/B | EL-1015JY | EL-1015JYE | EH-1020-2FY | 100 | 4 | 4 | 15 | 20 | 42 | | 1.0 | 16.7 | 300 | d2G4 | 22×4×15 | EH-1020-2FYE | 50/60 | 200/220 400/440 | F | EH-1020-2FQY | EH-1020-2FQYE | EH-1030-2FY | 100 | 4 | 4 | 22 | 30 | 55 | | 1.4 | | 450 | d2G4 | 22×4×15 | EH-1030-2FYE | 50/60 | 200/220 400/440 | F | EH-1030-2FQY | EH-1030-2FQYE | H-154Y | 150 | 6 | 4 | 22 | 30 | 30 | 98 | 2.0 (0.8) | 33.3 (13.3) | 390 | d1G3 | 22×4×15 | H-154QY | 50/60 | 200/220 400/440 | E/B | H-154JY | H-154JQY | L-204Y | L-204JY | DH-154Y | DH-154QY | DH-154JY | DH-154JQY | DL-204Y | DL-204JY | DH-154KY | DH-154QKY | DH-154JKY | DH-154JQKY | DL-204KY | DL-204KJY
|
|
