Model EM

POLLUTION PREVENTION ＆ WATER TREATMENT EQUIPMENT　-Submersible Motor-

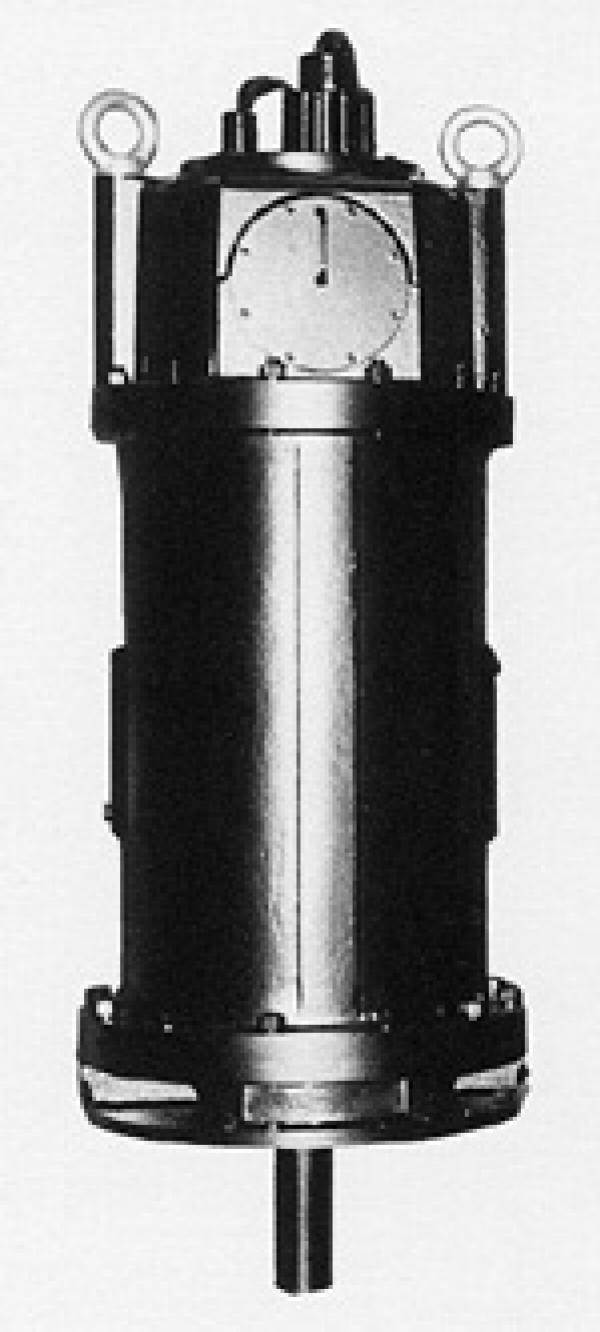

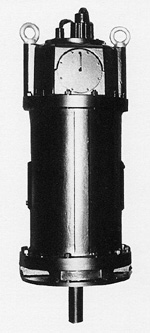

Model EM Submersible Motor

Powerful submersible motor for simplification and rationalization of various drive-system
　

■Optimum use for driving of submersible pumps, aerators, and mixers etc.

■Submersible geared-motor also available.

Model Motor Output No. of Poles Frequency Synchro Speed Full Load Characteristic Starting Current(A) Power Cable Weight 　 kW HP Hz min-1 Current(A) Efficiency(%) Power Factor(%) Slip(%) mm2×Core×Length(m) kg EM-22 1.5 2 2 50 3000 6.8 74.5 89.6 4.5 45 2.0×4×10 50 60 3600 6.7 72.9 92.7 4.7 38.9 EM-24 4 50 1500 7.5 76.6 79.4 3.0 41 60 1800 7.1 75.5 84.5 3.3 36 EM-32 2.2 3 2 50 3000 10 75.7 88.6 2.6 65 2.0×4×10 60 60 3600 10 73.0 91.9 2.5 56 EM-34 4 50 1500 10 78.7 84.5 3.4 62 60 1800 9.5 80.8 87.8 3.7 54 EM-52 3.7 5 2 50 3000 15 80.8 91.3 3.6 105 2.0×4×10 70 60 3600 15 79.5 93.1 4.0 89 EM-54 4 50 1500 16.5 79.3 85.1 4.3 78 60 1800 16.5 79.0 88.5 4.8 64 EM-56 6 50 1000 18.5 77.9 78.1 4.3 85 85 60 1200 18 77.5 81.1 4.6 65 EM-82 5.5 8 2 50 3000 21.6 81.6 93.3 3.9 145 3.5×4×10 85 60 3600 21.6 81.0 94.9 3.7 127 EM-84 4 50 1500 24.5 83.4 81.1 1.6 150 60 1800 23.2 83.4 86.2 1.5 127 EM-86 6 50 1000 28 77.8 76.9 4.1 121 100 60 1200 25.5 80.6 76.8 3.4 100 EM-102 7.5 10 2 50 3000 30 81.9 91.5 4.1 202 5.5×4×10 100 60 3600 30 81.0 94.0 4.0 180 EM-104 4 50 1500 30 85.1 84.9 2.6 208 60 1800 29 86.6 87.5 2.5 187 EM-106 6 50 1000 35 82.4 79.2 3.7 184 125 60 1200 32 82.4 86.7 3.3 154 EM-152 11 15 2 50 3000 45 86.6 86.2 2.1 314 5.5×3,4×10 2.0×4×10* 125 60 3600 43 86.5 90.1 2.0 262 EM-154 4 50 1500 44 86.0 85.7 3.8 241 60 1800 41 86.2 91.1 3.5 211 EM-156 6 50 1000 47 85.8 82.2 2.6 221 170 60 1200 46 85.5 84.8 2.5 189 EM-202 15 20 2 50 3000 60 84.5 91.5 2.0 345 14×3,4×10 2.0×4×10* 170 60 3600 59 86.0 92.7 2.1 288 EM-204 4 50 1500 63 87.1 82.3 2.1 375 60 1800 60 88.2 86.7 1.9 340 EM-206 6 50 1000 67 85.5 80.0 2.8 295 260 60 1200 63 86.1 84.1 2.7 252 EM-302 22 30 2 50 3000 85 88.1 88.3 2.0 512 14×3,4×10 2.0×4×10* 260 60 3600 83 87.9 90.5 2.0 440 EM-304 4 50 1500 83 89.2 88.0 3.3 498 60 1800 81 88.5 90.8 3.3 440 EM-306 6 50 1000 99 86.8 77.8 3.4 568 350 60 1200 95 86.4 81.3 3.4 483 EM-402 30 40 2 50 3000 110 90.0 90.8 2.0 720 22×3,4×10 2.0×4×10* 350 60 3600 107 90.2 91.0 2.1 710 EM-404 4 50 1500 115 89.1 88.4 2.6 692 60 1800 113 89.5 90.1 2.6 592

　
・The full load current and starting current are based on 200V 50/60Hz.
・Mark * shows the cable for thermal protector.
・37kW and larger models upto 370kW are also available.
・The characteristic values listed are subject to change without prior notice.
These values are for reference use. Please feel free to contact EIM for the guaranteed values.
