Model SU: 4-pole Series

SUBMERSIBLE PUMPS FOR SUMPS　　-For Sewage and Wastewater-

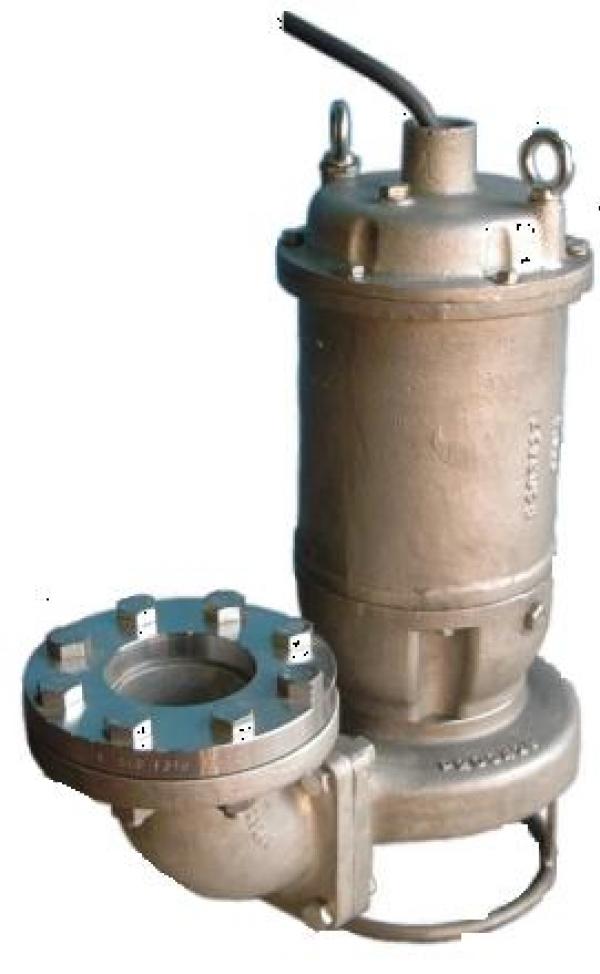

Model SU For Sewage and Waste Water

Optimum use for sewage in buildings, factories, septic tanks and many others
　

■Free from clogging by sewage and dust due to its non-clog impeller

■Smooth delivery of solid and fibrous materials

■Elbow assembly can also be mounted

Model Discharge No. of Poles Motor Output Rated Head Rated Flow Solid Handing Power Cable Weight Free Standing Ebow Assembly mm inch kW HP m ft m3/min l/s mm mm2×Core×Length(m) kg SU2-51E SU2-51B1 50/65* 2 4 0.75 1 8 26 0.21 3.5 20 1.25×4×8 37 SU5-82E SU5-82B 80 100* 65* 3 4 1.5 2 8 26 0.55 9.2 20 2.0×4×8 65 SU5-83E SU5-83B 4 2.2 3 10 33 0.6 10.0 22 2.0×4×8 67 SU5-85E SU5-85B 4 3.7 5 10 33 1.0 16.7 29 2.0×4×8 84 SU5-88E SU5-88B 80 100* 65* 3 4 5.5 8 20 66 0.6 10.0 29 3.5×4×8 155 SU5-810E SU5-810B 4 7.5 10 25 82 0.6 10.0 29 5.5×4×8 170 SU5-815ED SU5-815DB 4 11 15 25 82 1.0 16.7 29 5.5×3,4×8 180 SU5-820ED SU5-820DB 　 4 15 20 30 98 1.2 20 29 14×3,4×8 250 SU5-108E SU5-108B 100 4 4 5.5 8 10 33 1.5 25 34 3.5×4×8 145 SU5-1010E SU5-1010B 4 7.5 10 15 49 1.5 25 34 5.5×4×8 160 SU5-158E SU5-158BH 150 6 4 5.5 8 6 20 2.0 33.3 55 3.5×4×8 175 SU5-1510E SU5-1510BH 4 7.5 10 10 33 2.5 　 60 5.5×4×8 190 SU5-1515ED SU5-1515DBH 4 11 15 15 49 2.5 　 44 5.5×3,4×8 210 SU5-1520ED SU5-1520DBH 4 15 20 15 49 3.0 50 44 14×3,4×8 280 SU5-1530ED SU5-1530DB 4 22 30 20 66 3.0 50 35 14×3,4×8 430 SU5-2015ED SU5-2015DBH 200/250* 8 4 11 15 10 33 4.0 66.7 60 5.5×3,4×8 240 SU5-2020ED SU5-2020DBH 4 15 20 10 33 5.0 83.3 60 14×3,4×8 380 SU5-2030ED SU5-2030DBH 4 22 30 15 49 5.0 83.3 65 14×3,4×8 400 SU5-2040ED SU5-2040DBH 4 30 40 26 85 3.5 58.3 45 22×3,4×8 600 SU5-2050ED SU5-2050DBH 4 37 50 22 72 5.0 83.3 55 22×3,4×8 620 SU5-2060ED SU5-2060DBH 4 45 60 30 98 5.0 83.3 55 38×3,4×8 650 SU5-2520ED SU5-2520DB1B 250 10 6 15 20 8 26 6.0 100 75 14×3,4×8 500 SU5-2530ED SU5-2530DB1B 6 22 30 13 43 6.0 100 75 14×3,4×8 650 SU5-2550ED SU5-2550DB1B 6 37 50 17 56 8.5 141.7 75 22×3,4×8 900 SU5-2560ED SU5-2560DB1B 4 45 60 27 89 6.0 100 75 38×3,4×8 700 SU5-25100ED SU5-25100DB1B 4 75 100 28 92 8.0 133.3 75 38×3,4×8 1,000 SU5-3020ED SU5-302DB1B 300 12 6 15 20 5 16 10.0 166.7 75 14×3,4×8 500 SU5-3030ED SU5-3030DB1B 6 22 30 8 26 10.0 166.7 75 14×3,4×8 650 SU5-3050ED SU5-3050DB1B 6 37 50 15 49 8.0 133.3 75 22×3,4×8 930 SU5-3060ED SU5-3060DB1B 6 45 60 16 53 10.0 166.7 75 38×3,4×8 950 SU5-3075ED SU5-3075DB1B 6 55 75 18 59 12.0 200 75 38×3,4×8 1,050 SU-30150ED SU-30150DB1B 4 110 150 38 125 11.5 191.7 75 50×3,4×8 1,200 SU5-3550ED SU5-3550DB1B 350 14 6 37 50 10 33 14.0 233.3 75 22×3,4×8 1,150 SU5-3575ED SU5-3575DB1B 6 55 75 13 43 17.0 283.3 75 38×3,4×8 1,200 SU-35100ED SU-35100DB1B 6 75 100 17 56 18.0 300 75 38×3,4×8 1,700 SU5-4050ED SU5-4050DB1B 400 16 6 37 50 7.5 25 18.0 300 75 22×3,4×8 1,250 SU5-4060ED SU5-4060DB1B 6 45 60 9.5 31 18.0 300 75 38×3,4×8 1,270 SU5-4075ED SU5-4075DB1B 6 55 75 11 36 21.0 350 75 38×3,4×8 1,300 SU-5075ED SU-5075DB1B 500 20 8 55 75 7.5 25 30.0 500 100 38×3,4×8 2,200 SU-50150ED SU-50150DB1B 6 110 150 14 46 34.0 566.7 100 50×3,4×8 2,500 SU-50185ED SU-50185DB1B 6 140 185 15 49 36.0 600 100 50×3,4×8 3,000 SU-50365ED SU-50365DB1B 6 275 365 35 115 30.0 500 95 150×3,4×8 4,500 SU-60220ED SU-60220DB1B 600 24 8 160 220 11 36 60.0 1,000 100 100×3,4×8 3,500

　
・A motor protector (bimettalic auto cut) is installed for motors under 7.5kW.
・EIM can provide a water penetration detector (above 5.5kW) on request.
・Mark * shows availability of discharge sizes, on request.
・Weight indicates the values of free-standing type.
・Power cable : 2PNCT(except 1.25mm2), VCT(1.25mm2 only)
